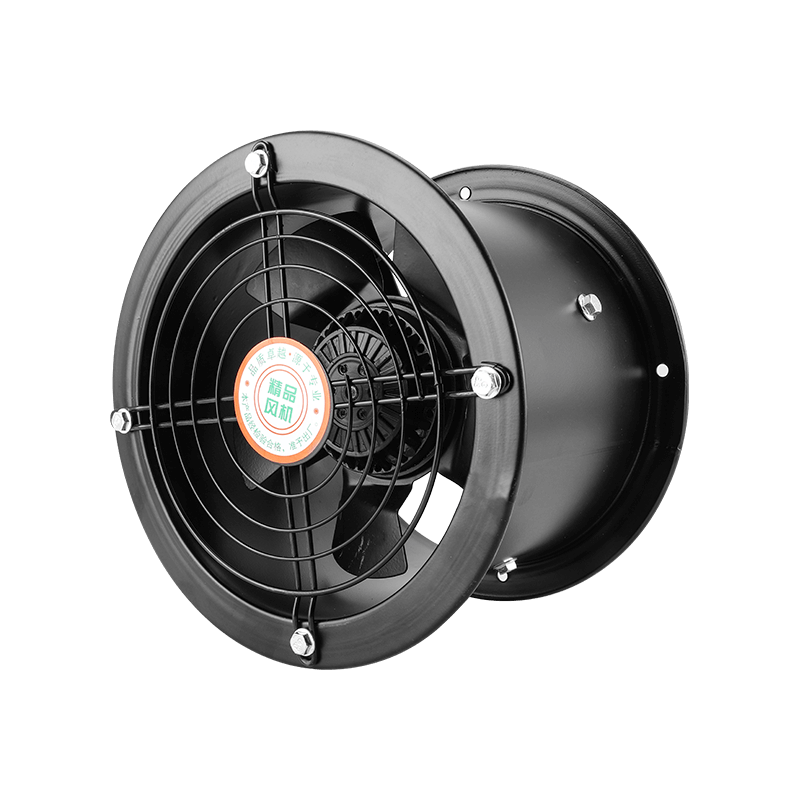

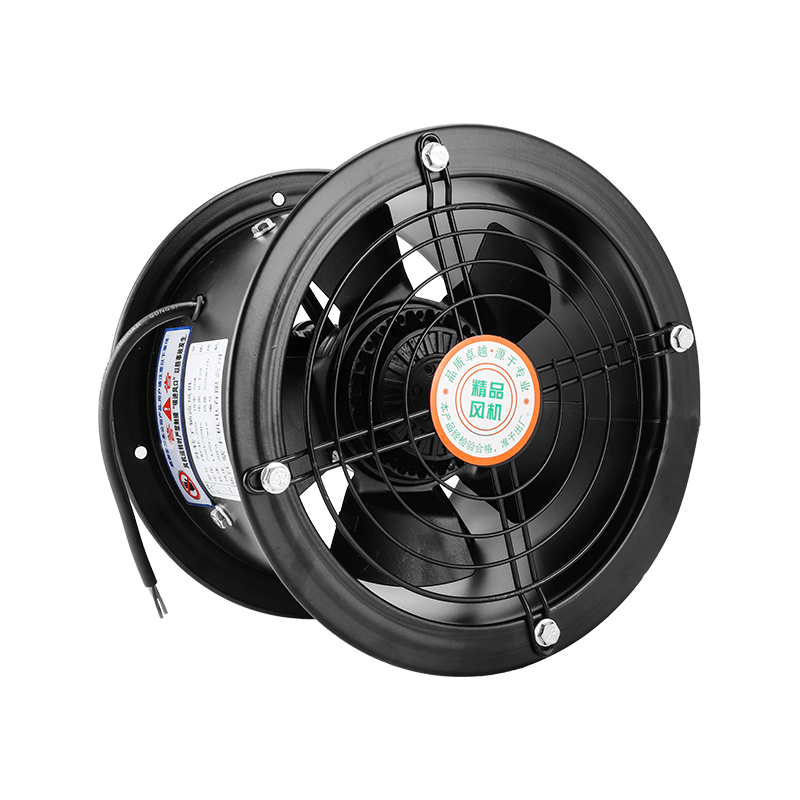

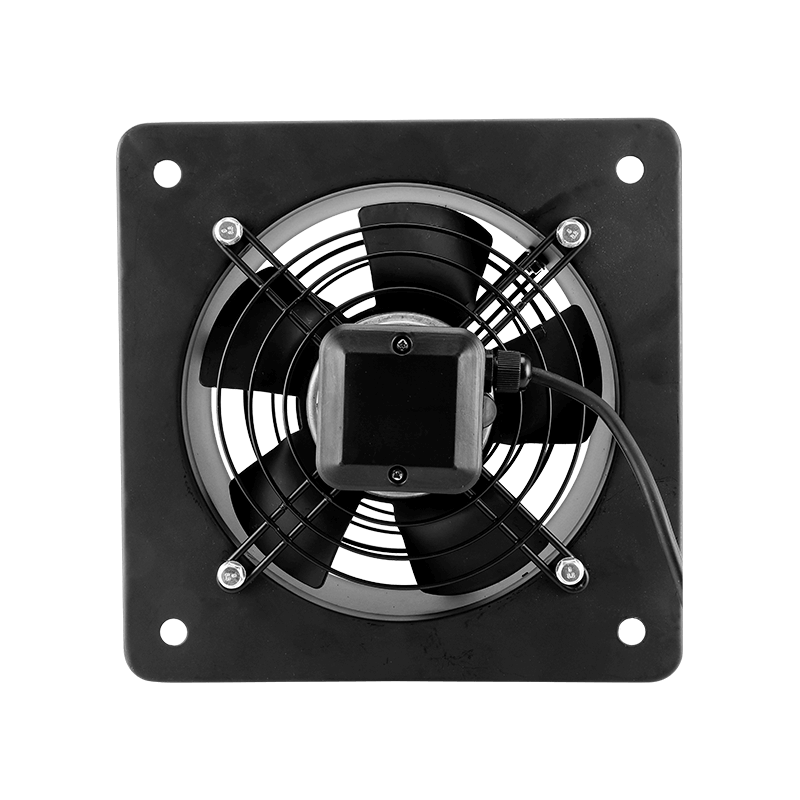

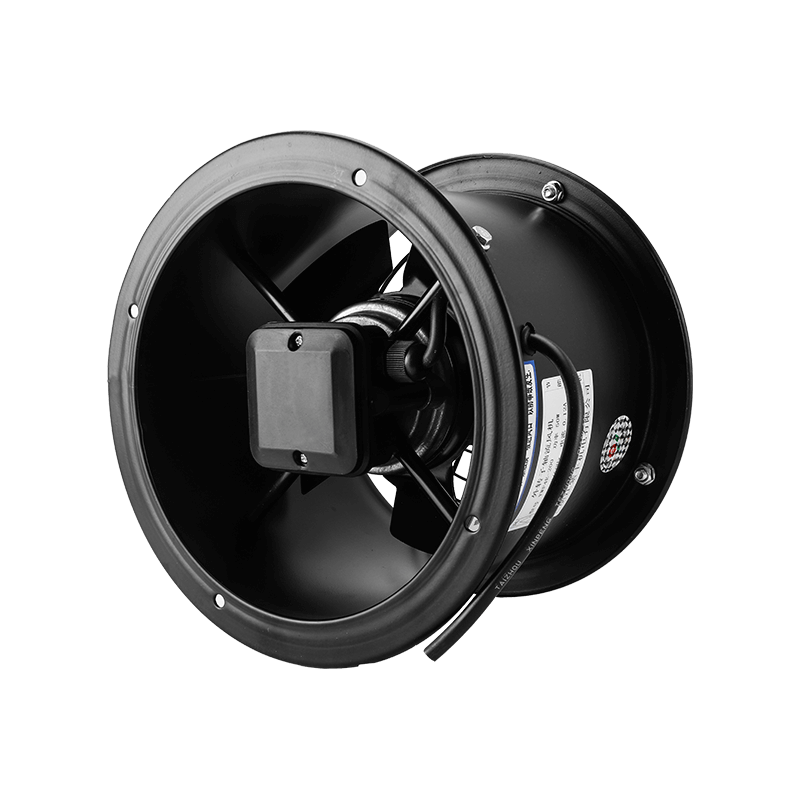

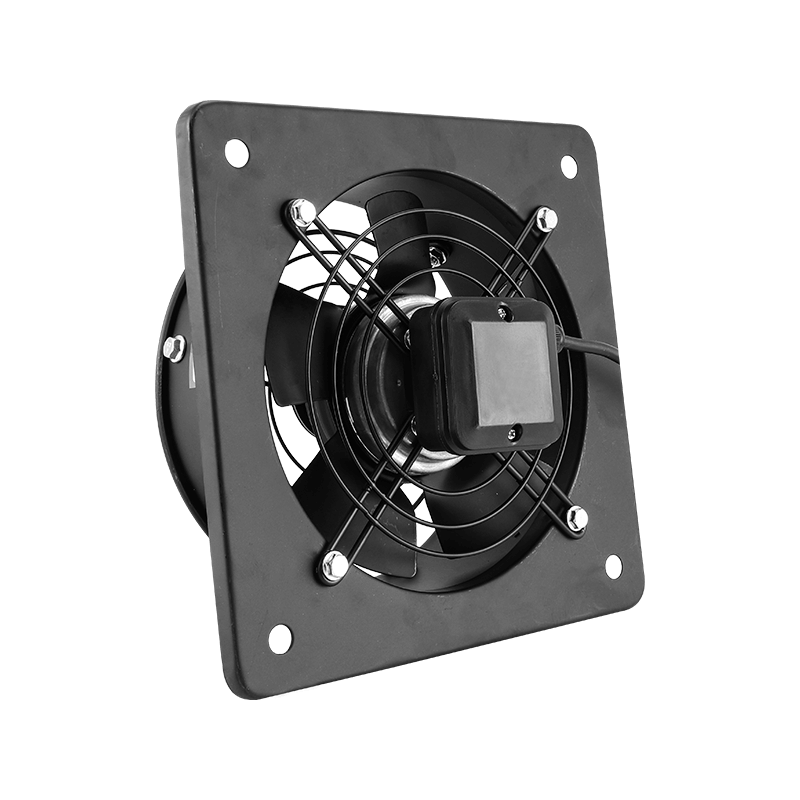

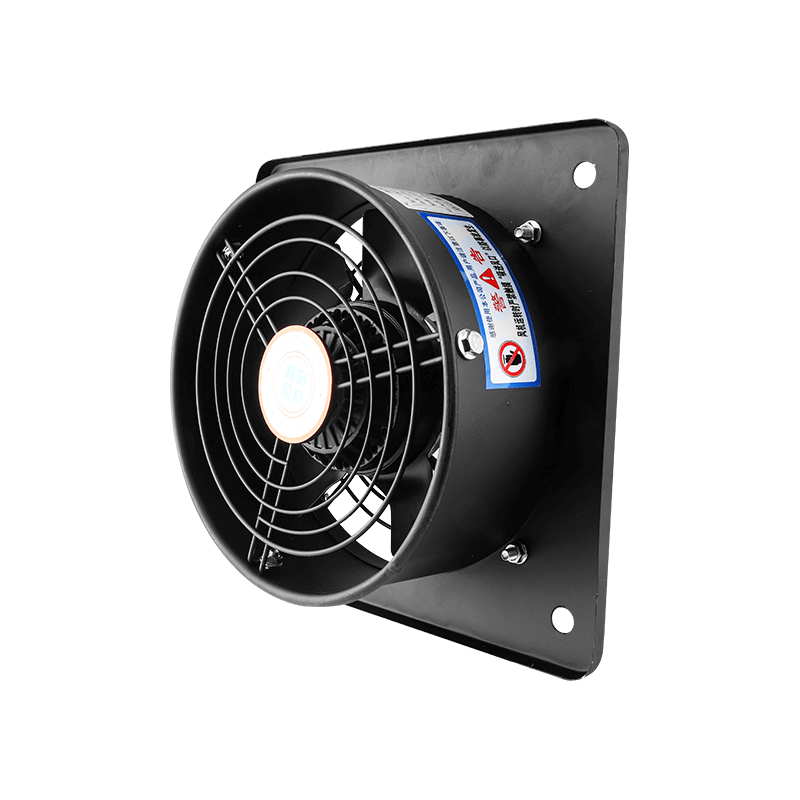

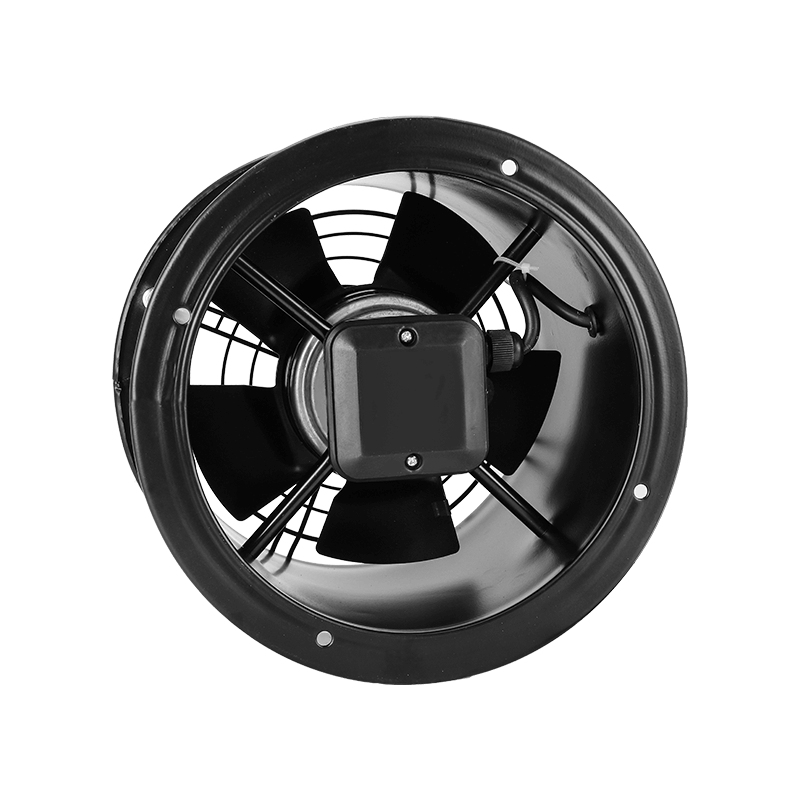

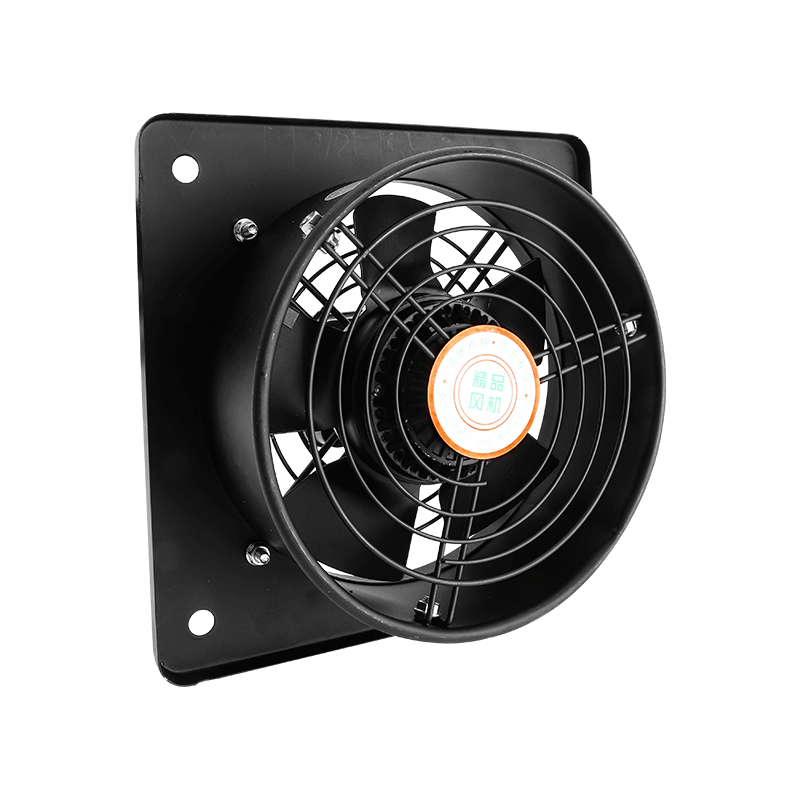

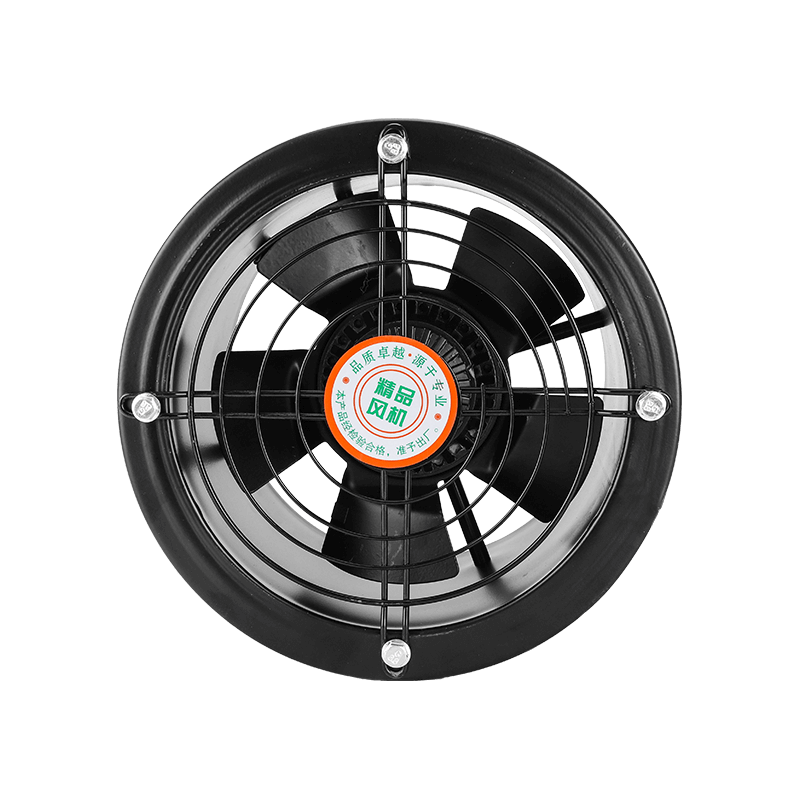

380V external rotor axial flow fan 220v low noise high speed smoke exhaust fan exhaust fan

Features: High efficiency, fully enclosed, low noise, low vibration, short axial dimension, small cooling exhaust fan, maintenance-free, etc.

The motor is small and the impeller is light, suitable for exhaust air and ventilation use.

Application: Can be used in kitchen and bathroom, factories, purification equipment and other occasions where oil smoke is more serious.

Details

NO.	Airflow m³/h	Voltage V	Motor power kw	Rotational Speed rpm	Noise dB(A)
YWF-200-2	1050	220	0.055	2600	65
YWF-200-2	1050	380	0.05	2600	65
YWF-200-4	510	220	0.04	1450	53
YWF-200-4	514	380	0.05	1450	53
YWF-250-2	2100	220	0.155	2600	69
YWF-250-2	2100	380	0.11	2600	69
YWF-250-4	1300	220	0.05	1400	55
YWF-250-4	1200	380	0.05	1400	55
YWF-300-2	2700	220	0.165	2600	69
YWF-300-2	2500	380	0.135	2600	69
YWF-300-4	2200	220	0.07	1350	61
YWF-300-4	2200	380	0.08	1400	61
YWF-350-4	2850	220	0.095	1400	65
YWF-350-4	2700	380	0.1	1400	65
YWF-350-2	4000	220	0.3	2600	68
YWF-400-2	4400	220	0.33	2600	70
YWF-400-4	4150	220	0.14	1420	68
YWF-400-4	4100	380	0.115	1400	68
YWF-500-4	6500	220	0.245	1400	74
YWF-500-4	6500	380	0.215	1350	74
YWF-600-4	10600	220	0.7	1310	78
YWF-600-4	12600	380	0.82	1350	78

Product Size:
Unit: mm

Model	Fan blade diameter	Outside diameter of duct	Inner diameter of wind pipe	Bezel length	Tube height
YWF200	200	225	215	275	95
YWF250	250	275	265	325	100
YWF300	300	325	315	375	105
YWF350	350	375	365	425	130
YWF400	400	425	415	475	130
YWF500	500	530	515	575	155
YWF600	600	630	615	675	155
