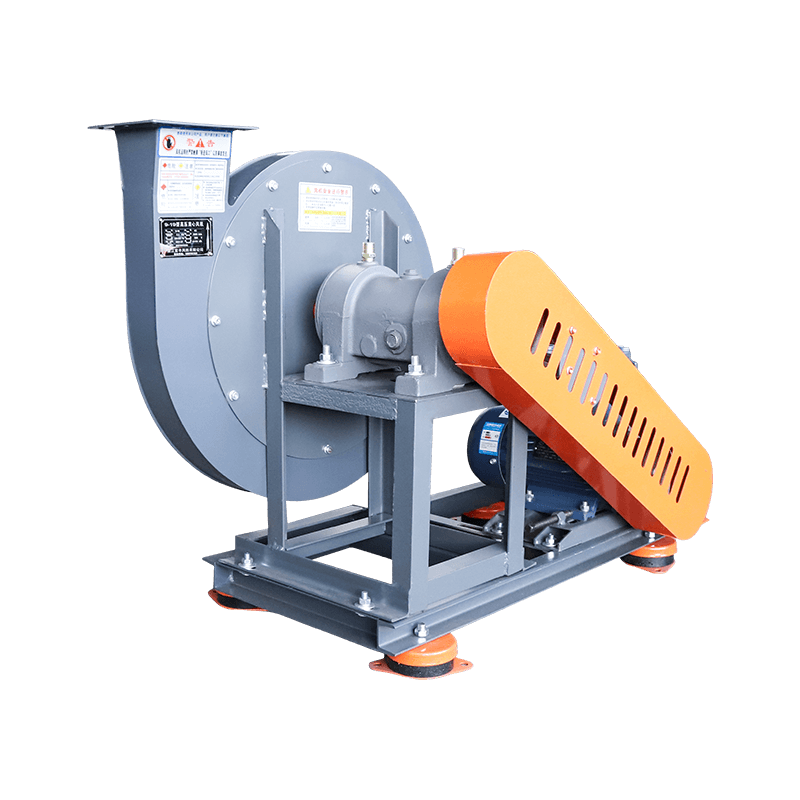

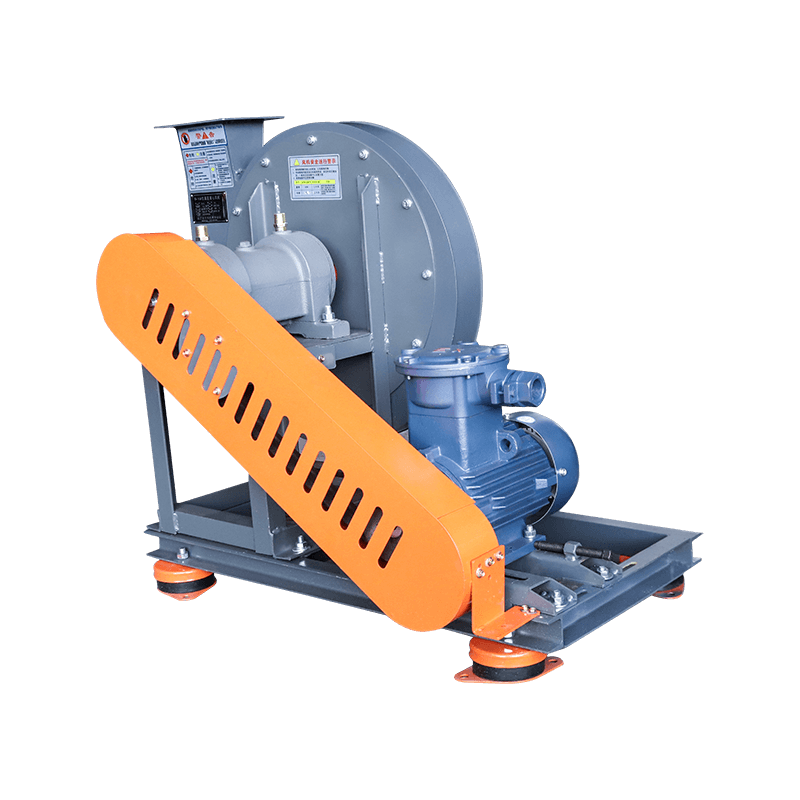

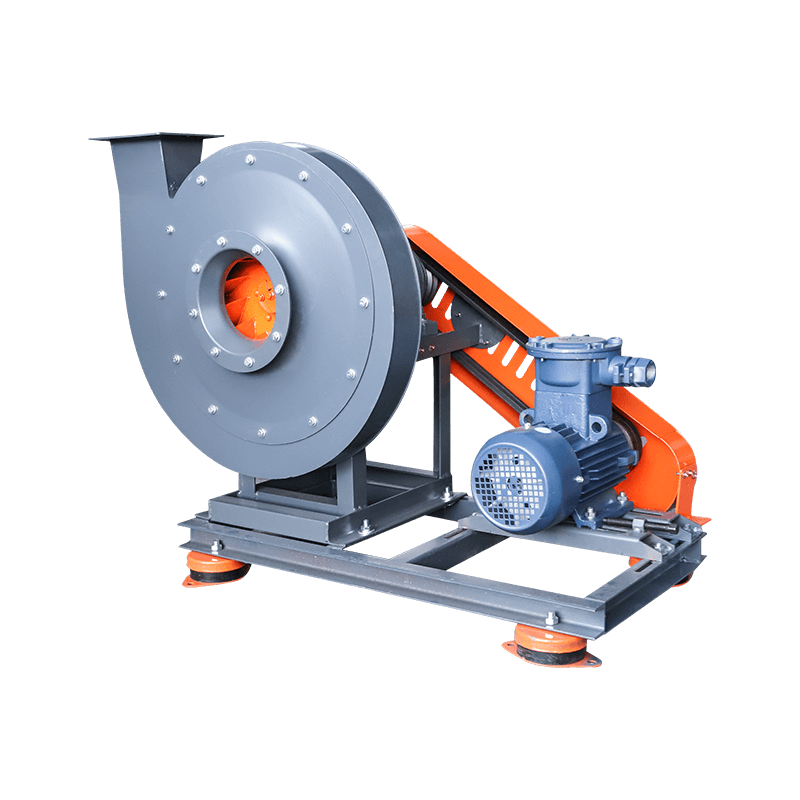

9-19C type high pressure centrifugal fan fan large suction suction fan blower drive fan

Core Performance: It has the characteristics of high efficiency, low noise, flat performance curve and wide efficient area.

Applications: Building ventilation, Fume removal, Dust removal, Dust collection, Oven and dryer exhaust, Combustion air, Incinerators, Heat recovery.

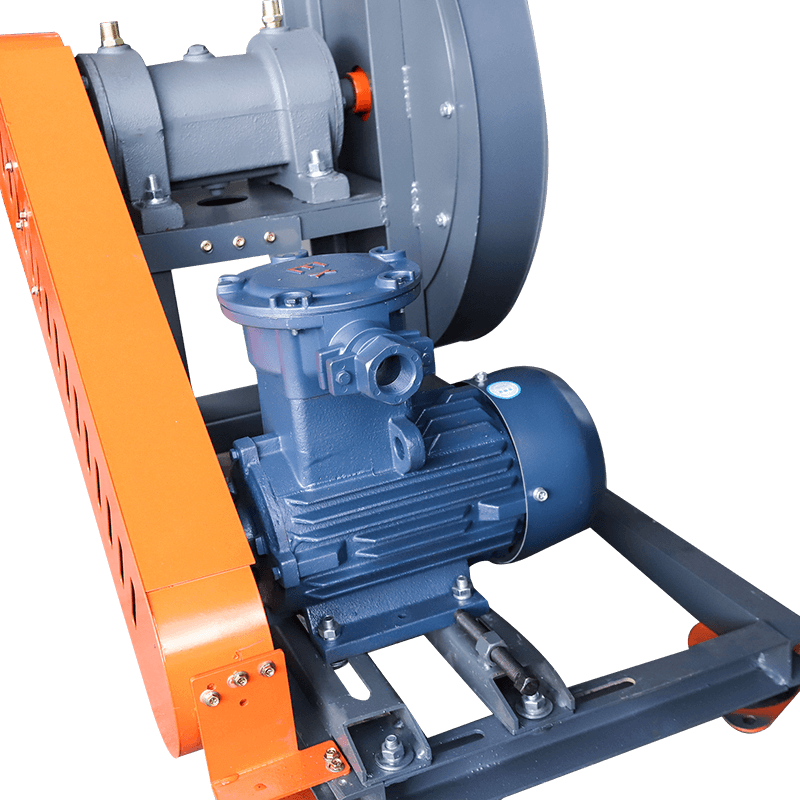

Function: The fan can output higher gas pressure, and can provide more gas flow at the same time, low noise.The motor shaft is elastically connected with the drive shaft. It is not necessary to tighten the belt or replace the belt frequently, and the maintenance workload is small.The fan is made of high quality carbon steel, and can also use stainless steel or other metal materials according to customer requirements.

Details

Aircraft number (№)	Power (KW-P)	Airflow (m³/h)	Full pressure (Pa)
3.15C	1.1-2	390-810	1919-1953
3.15C	0.75-2	390-810	1919-1953
3.55C	2.2-2	560-760	2545-2590
3.55C	1.5-2	560-760	2545-2590
4C	2.2-2	824-1264	3584-3597
4C	3-2	1410-1704	3507-3253
4.5C	4-2	1174-2062	4603-4447
4.5C	5.5-2	2281-2504	4297-4112
5C	7.5-2	1610-2844	5697-5517
5C	11-2	3166-3488	5323-5080
5.6C	11-2	2262-3619	7182-7109
5.6C	18.5-2	3996-4901	6954-6400
6.3C	18.5-2	3220-5153	9149-9055
6.3C	30-2	5690-6978	8857-8148
